| Tên thương hiệu: | Enerkey |
| Số mẫu: | EK-B24S8E300A |
| MOQ: | 5 miếng |
| giá bán: | $157.5-$172.8 |
| Chi tiết đóng gói: | Hộp giấy chắc chắn + Xốp EVA |
| Điều khoản thanh toán: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

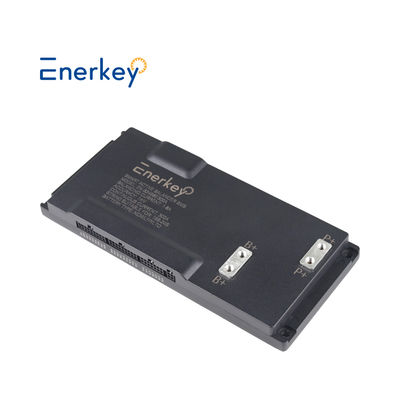

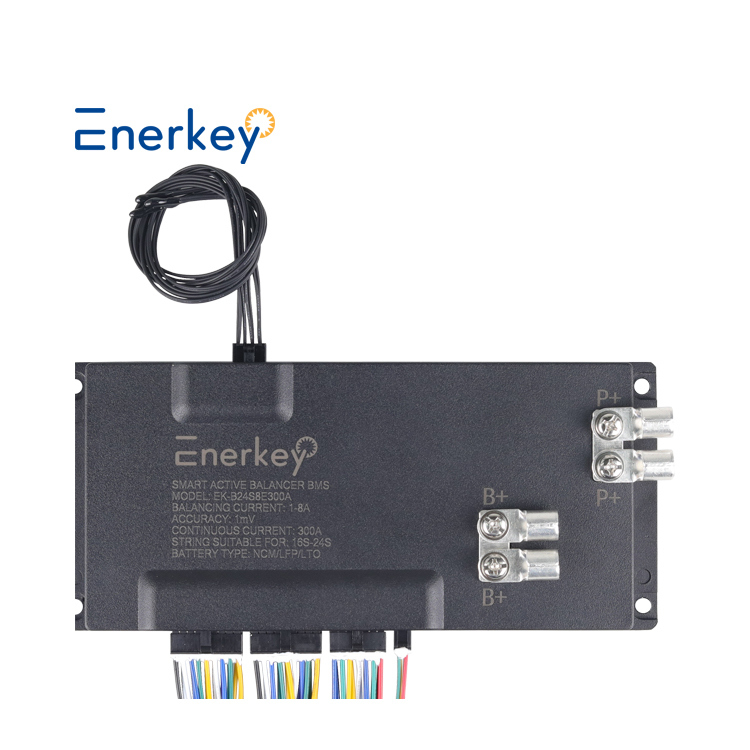

Enerkey Smart Active Balance BMS EK-B24S8E300A 16S-24S 15A-300A BMS with Active Equalization 1A-8A Support CAN/RS485
Electric Vehicles bms with RS485/ CAN ,Lithium LFP/NMC/LTO/SIB Battery Pack 16S 48V 24S 72V 100A/150A/200A/250A/300A 8A Active Balance Management System Parallel BMS, which can be connected to the PC master , Bluetooth APP to intelligently manage of the lithium battery. Supporting and customization inverter protocols.
Electric Vehicles bms features:
* Be integrated with interface board with one dry contact and four DIP switch, 8A active balancer；
* Supports RS485, and CAN communication functions, can be used to monitor data and set parameters by PC software；
* Be compatible with the following inverter: Voltronicpower, Growatt, SRNE, Pylon, DeYe, SMA, Aiswei, Victronenergy, Must.
* Supports Bluetooth module, using with SMART BMS app, to monitor data, set parameters
The APP has two versions of Android system and IOS system, both support Chinese and English
For IOS phone, You can directly search "Enerkey" in appstore
For Android phone, Please directly search "Enerkey" in google play store
| Item | Smart Active Balancer BMS | |||
| Product Model | EK-B24S8E200A | EK-B24S8E250A | EK-B24S8E300A | |
| Product size | L237 x W107 x T24.5(mm) | |||
| Product weight | 1500g | |||
| Single cell voltage collection range | 1.5V～4.5V | |||
| Communication ports | CAN/485 | |||
| Outlet mode | Same ports | |||
| Product material | Aluminum alloy, PC plastic, FR-4/lead-free tin-spraying | |||
| Battery protection parameters | ||||

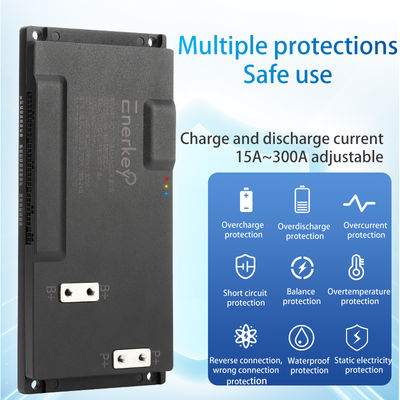

| Continuous discharge current |
120A Default 15A～200A adjustable |
120A Default 15A～250A adjustable |
120A Default 15A～300A adjustable |
|
| Continuous charge current |
200A Default 15A～200A adjustable |
250A Default 15A～250A adjustable |
300A Default 15A～300A adjustable |
|
| Battery type | NCM | LFP | LTO | |
| Battery string number | 16S～24S | 16S～24S | 20S～24S | |
| Single cell overcharge protection value | 4.200V | 3.650V | 2.700V | |
| Single cell overcharge recovery value | 4.000V | 3.450V | 2.400V | |
| Single cell undervoltage protection value | 2.900V | 2.600V | 1.600V | |
| Single cell undervoltage recovery value | 3.100V | 2.900V | 1.800V | |
| Equalization parameters | ||||
| Active balancing current | 1A～8A(adjustable) | |||
| Balanced voltage accuracy | 1mV(adjustable) | |||
| Start balancing voltage difference value | 0.001V～5.000V(adjustable) | |||
| Stop balancing voltage difference value | 0.001V～5.000V(adjustable) | |||
| Balanced start voltage value | 1.500V～4.500V(adjustable) | |||
| Balanced stop voltage value | 1.500V～4.500V(adjustable) | |||
| Temperature protection parameters | ||||
| Charge over-temperature protection | Default 60℃/30℃～80℃ (adjustable) | |||
| Charge over-temperature recovery | Default 50℃/30℃～80℃ (adjustable) | |||
| Charge low-temperature protection | Default -2℃/-40℃～20℃(adjustable) | |||
| Charge low-temperature recovery | Default 2℃/-40℃～20℃(adjustable) | |||
| Discharge over-temperature protection | Default 60℃/30℃～80℃(adjustable) | |||
| Discharge over-temperature recovery | Default 50℃/30℃～80℃(adjustable) | |||
| Discharge low-temperature protection | Default -10℃/-40℃～20℃(adjustable) | |||
| Discharge low-temperature recovery | Default -5℃/-40℃～20℃(adjustable) | |||
Precautions:
①. Installing the protection equalization board requires a certain amount of electronic knowledge.
②. Welding the cable: The first cable (black line) is connected to the total negative pole of the battery, the second cable (red line) is connected to the positive pole of the first battery string, and the third cable (red line) is connected to the positive pole of the second battery string... and so on, connect all the cables;
③. Detect the cable: After connecting the cable, measure the voltage between two adjacent cables from the head of the cable to confirm that there is no problem of wrong connection or missing connection in the welding sequence of the cable.
④. Connect the B+ line of the protection board to the total positive pole of the battery, and then connect the sampling cable plug to the protection board. After activating the protection board, confirm that the voltage before the board (battery voltage B+.B-) and the voltage after the board (P+.P-) are consistent.
Q1. Why did we choose you?
* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.
* Products have passed FCC, CE, ROHS and other international standards certification.
* We can provide you with factory price, Welcome you to visit our factory and production process.
Q2. What is your product range (type)?
*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.
*Mainly used for LFP, Li-ion and LTO and SIB batteries.
Q3: How do I know which kind of material & type my battery is ?
*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.
*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.
Q4. Do you have minimum order requirements?
Can it be customized? What is the lead time for samples and batches?
*Our minimum order quantity is 1 piece, ODM customization is available.
* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.
Q5: What if i can't use it?
*Regular products have instructional videos, We can also support online video call guidance from engineers.
Q6. What are your terms of payment?
*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB
Q7. How do you guarantee the quality?
* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.
* Obtained FCC, CE, ROHS and other international standard certification.
* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.
Q8. How to choose a BMS suitable for our battery?
*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.
Q9. How can i contact you?
*We have 7x24 hours online service, Please leave us a message online.
*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.
If you have any advices or requests, Warmly welcome your consulting.
|
