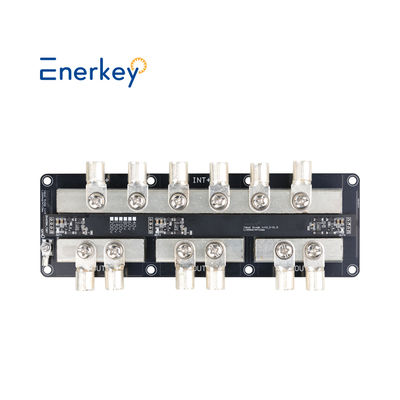

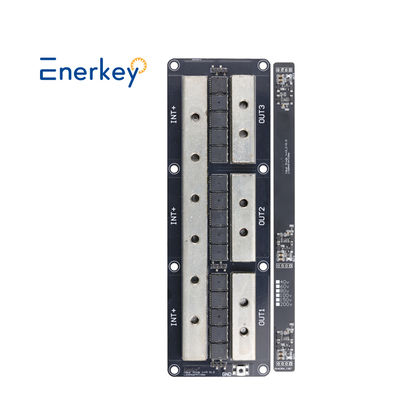

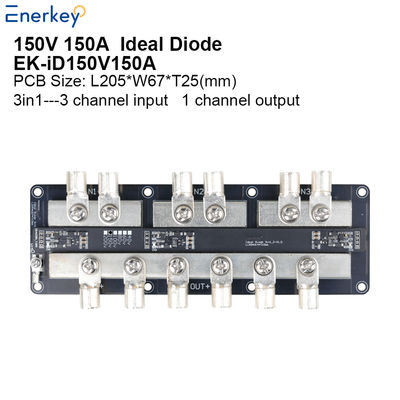

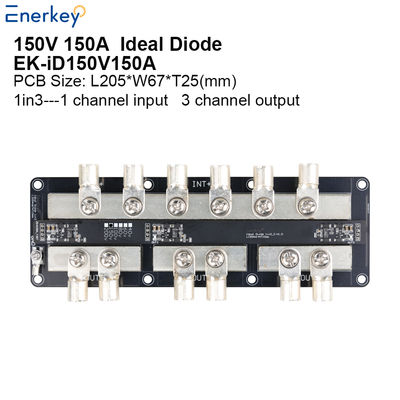

Enerkey 150V 150A 1in3 3in1 Ideal Diode Module Reliable Power Rectification Solutions for RV Modification
A 150V, 450A ideal diode module is a high-performance power diode designed for demanding applications where high current and low voltage drop are crucial. These modules are typically used in power electronics, such as inverters, rectifiers, motor drives, and other high-current switching applications.
Here’s a detailed breakdown of the key features and specifications that such a product would ideally have:
1. Key Specifications:
Nominal Reverse Voltage (V_R): 100V
This indicates that the module can block up to 100V of reverse voltage when in the off-state.
Forward Current (I_F): 450A
This is the maximum continuous current the diode can conduct in the forward direction. A 450A rating is very high, suitable for industrial-grade applications like power supplies, motor control, and high-power inverters.
Forward Voltage Drop (V_F): Ideally close to 0V (but realistically can be very low in high-performance diodes).
The forward voltage drop should be minimal to reduce power losses. Ideally, it would be close to 0V, but even real-world diodes strive to keep this very low (e.g., around 0.8V).
Reverse Recovery Time (T_rr): Ideally 0 ns (but real-world diodes can have small recovery times).
In ideal conditions, there would be no reverse recovery time, which means the diode switches instantly between conducting and non-conducting states.
Reverse Leakage Current (I_R): Ideally 0 A in reverse bias conditions.
The diode should ideally have zero reverse leakage current when reverse biased, though in practice, a very small amount might still occur.
Peak Reverse Current (I_RRM): 450A (or a bit higher).
The peak reverse current refers to the amount of current the diode can withstand when transitioning from the conducting to non-conducting state.
Operating Temperature Range: -40°C to +150°C (typical for high-power modules).
The diode module should function across a wide range of temperatures, ensuring reliable performance even in harsh conditions.
Thermal Resistance (R_θ): Low to ensure minimal heat buildup during operation.
Thermal management is crucial for high-power devices, and the ideal diode should have low thermal resistance, typically under 0.5°C/W to effectively dissipate heat.
|
Enerkey Ideal Diode Module 40V 60V 80V 100V 150V 200V 150A 1in3 3in1 Photovoltaic Solar Base Station Industrial Control Electric Car Battery in Parallel For Battery charging anti-backfilling
|
|||
| Product model | EK-iD100V150A | EK-iD150V150A | EK-iD200V150A |
|
Working voltage range
|
9-100V
|
9-150V |
9-200V
|
|
Product Size(mm)
|
L195*W67*T25
|
L195*W67*T25 |
L195*W67*T25 |
|
Weight with box
|
0.93kg
|
0.94kg |
0.95kg
|
|
Battery Type
|
NCM/LFP/LTO
|
NCM/LFP/LTO |
NCM/LFP/LTO
|
|
Continuous current
|
450A
|
||
| Peak starting current | 450A | ||
|
Quiescent operating current
|
0.6-1.5mA
|
||
|
Copper foil thickness
|
3.0 oz
|
||
|
PCB material |
Aluminum plate
|
||
| On-going internal resistance | NA | ||
| Working principle | The input and output are equivalent to diodes. It detects that the output voltage is greater than the input and immediately turns off the output. The detection value is at the millivolt level and the response speed is very fast. | ||
|
Application
|
1. Solar panels prevent backflow (anti-backflow);
2. Battery charging prevents backflow (anti-backflow) (anti-backflow); 3. DC-DC constant voltage and constant current module output prevents backflow 4. Other occasions where backflow prevention (anti-backflow) is required |
||
| Accessories | Terminal lug*13; IN+/OUT+ terminal lug : OTZ25-6, screw M6 *12 GND terminal lug : OTZ2.5-3, screw M3 *1 |
||
|
Operating Temperature
|
-40℃ ~ +60℃
|
||
Special Note:
1. This version is the latest optimized version. The module will not be burned if the positive and negative poles are connected reversely, which improves the safety of installation;
2. The ideal diode is a diode with ultra-low internal resistance as the name implies. The conduction voltage drop of ordinary diodes is more than 0.6V. The conduction voltage drop of an ideal diode is almost negligible.
3. The copper foil layer and aluminum base layer of the aluminum substrate PCB traces are insulated with a withstand voltage of 1000V, so there is no need to worry about breakdown problems.
The thermal conductivity is 20 times faster than FR4 glass fiber, and can be directly attached to the large heat sink.
4. This ideal diode module cannot be used in rectifier circuits!
Q1. Why did we choose you?
* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.
* Products have passed FCC, CE, ROHS and other international standards certification.
* We can provide you with factory price, Welcome you to visit our factory and production process.
Q2. What is your product range (type)?
*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.
*Mainly used for LFP, Li-ino and LTO batteries.
Q3: How do I know which kind of material & type my battery is ?
*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.
*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.
Q4. Do you have minimum order requirements?
Can it be customized? What is the lead time for samples and batches?
*Our minimum order quantity is 1 piece, ODM customization is available.
* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.
Q5: What if i can't use it?
*Regular products have instructional videos, We can also support online video call guidance from engineers.
Q6. What are your terms of payment?
*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB
Q7. How do you guarantee the quality?
* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.
* Obtained FCC, CE, ROHS and other international standard certification.
* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.
Q8. How to choose a BMS suitable for our battery?
*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.
Q9. How can i contact you?
*We have 7x24 hours online service, Please leave us a message online.
*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.
|
|
